7
Лет надежной работы
Более 70
Реализованных проектов
2
Всего 2 провода для передачи данных и питания
1000 КМ
Сэкономленного кабеля
INSOL MASS
INSOL 905
INSOL 903
INSOL NODE
INSOL 901
Автоматический поточный влагомер нефти и нефте-продуктов для систем подготовки нефти
Interphase Level Meter with Emulsion Layer Height Measurement
INSOL 905
INSOL 903
INSOL NODE
Автоматический поточный влагомер нефти и нефте-продуктов для систем подготовки нефти
Interphase Level Meter with Emulsion Layer Height Measurement
INSOL 901
Industrial Switch with 10BASE-T1L Support
Промышленный коммутатор с поддержкой 10BASE-T1L
Integration Module for Connection to the Overall Control System
Integration Module for Connection to the Overall Control System
INSOL MASS: Maximum Efficiency in Oil Preparation
In the oil industry, precise measurement of the oil level and quantity in storage tanks, as well as minimizing the loss of oil with associated water, is a key factor for effective management of industrial operations. "INSOL" offers the innovative INSOL MASS system, specifically designed to optimize and improve the efficiency of operations in vertical steel tanks.

The INSOL MASS system is designed to create the most efficient oil level and quantity measurement system in vertical steel tanks.

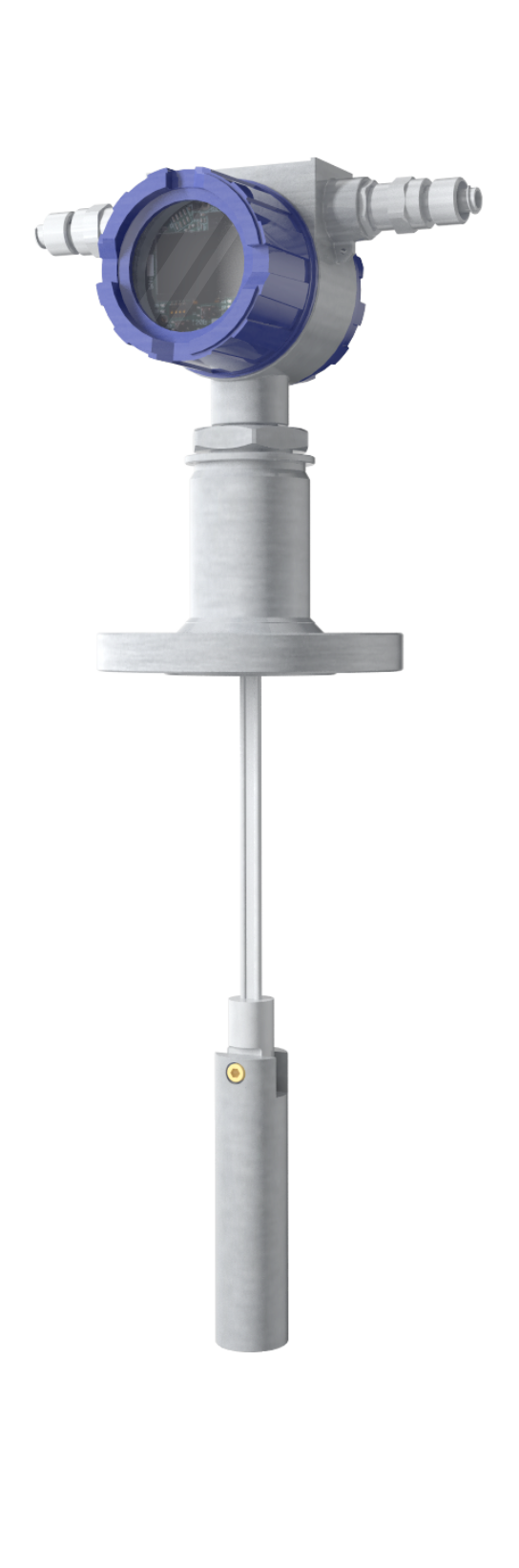

Multifunctional level meter with emulsification layer measurement function INSOL 901

Flow moisture meter INSOL 902

Shut-off valves with electric or pneumatic drives

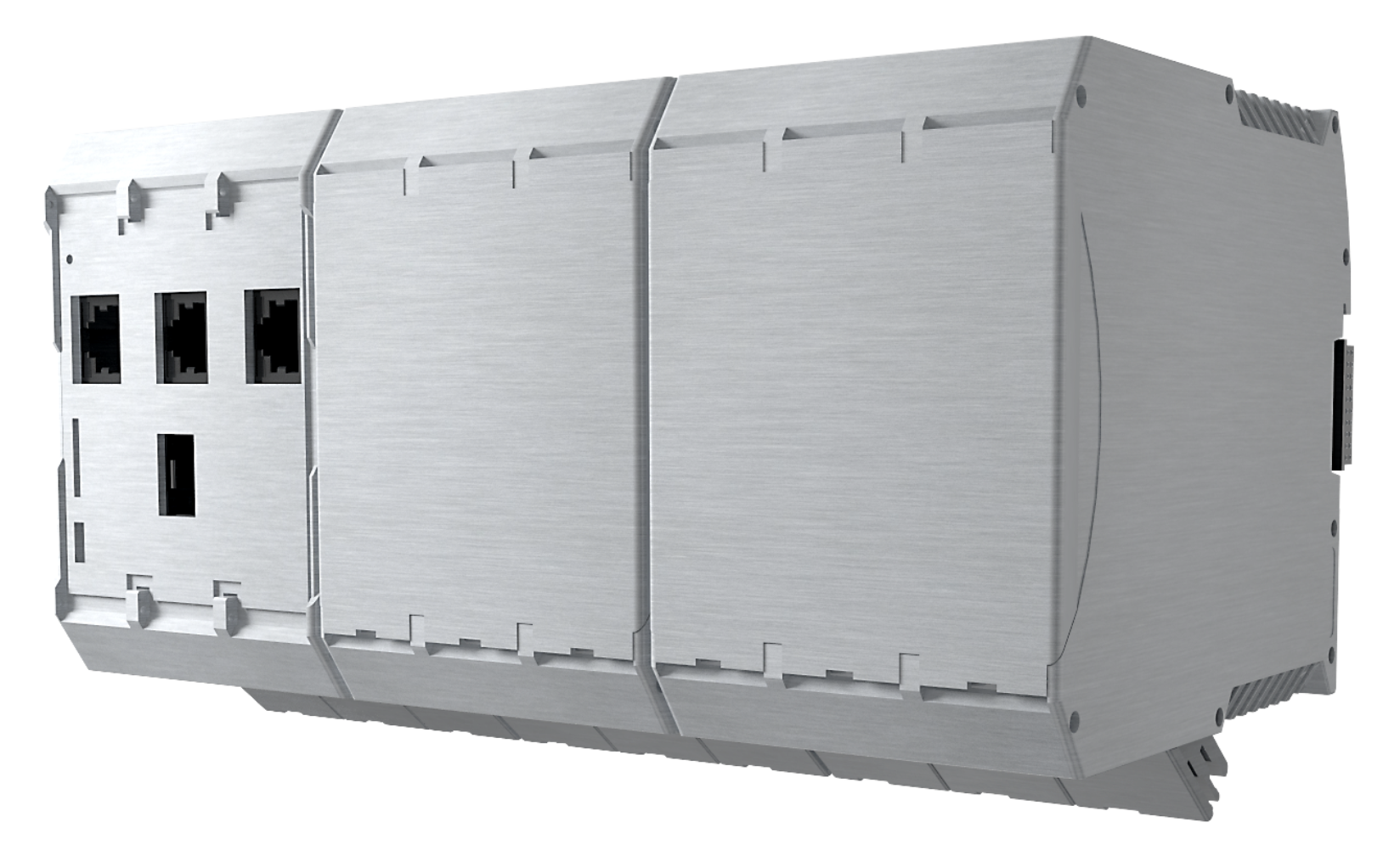

INSOL 905 integration module
The INSOL MASS system includes the following core equipment:
If necessary, multipoint temperature sensors, high-level alarms, or other measuring equipment installed on the tank can be connected to the electronic block of the INSOL 901 level meter.

In this case, both signal reception and power supply for the connected devices are handled through the INSOL 901 level meter's electronic block.

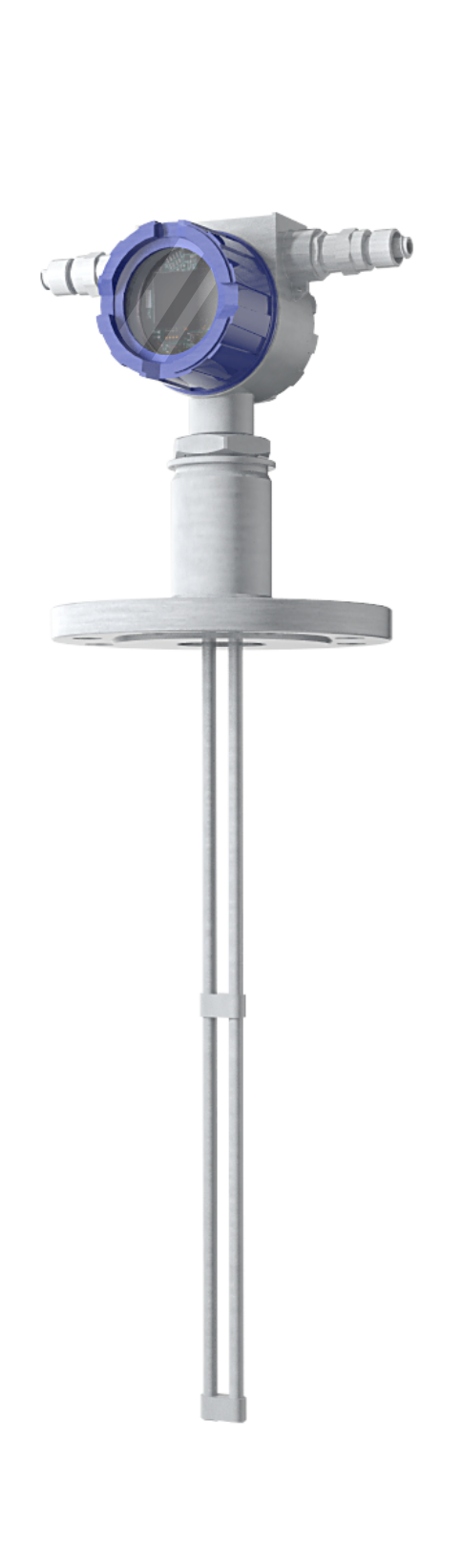

INSOL 901 reflex radar level meters allow for the measurement of the level and thickness of the emulsification layer in the crude oil storage tank (RVS). This enables precise determination of the lower boundary of pure oil and the upper boundary of pure water. Such layered control allows for real-time monitoring and analysis of the oil separation process and the separation of formation water.
INSOL MASS enables the automated discharge of clean produced water. Control of the shut-off or control valve is carried out based on the level of clean water through the INSOL 905 integration module. Additional control is implemented on the discharge line using the INSOL 903 flow moisture meter, which is configured to measure the oil content in the water.
Easy Connection of Additional Devices Without Auxiliary Equipment
Layered Control of the Technological Process
Automated Discharge of Produced Water with Dual Oil Content Control
Increasing Efficiency and Saving Energy Resources
INSOL MASS allows for the integration of additional information into the overall control system, enabling real-time adjustments to the technological process to enhance the efficiency of oil preparation and storage.
