INSOL 901-902
Interphase Level Gauge
An interphase level meter is a device designed to determine the level of the boundary between different liquid phases in a single container or tank. These devices are specifically designed to identify and monitor levels where separation occurs, such as between oil and water or chemicals with different densities.

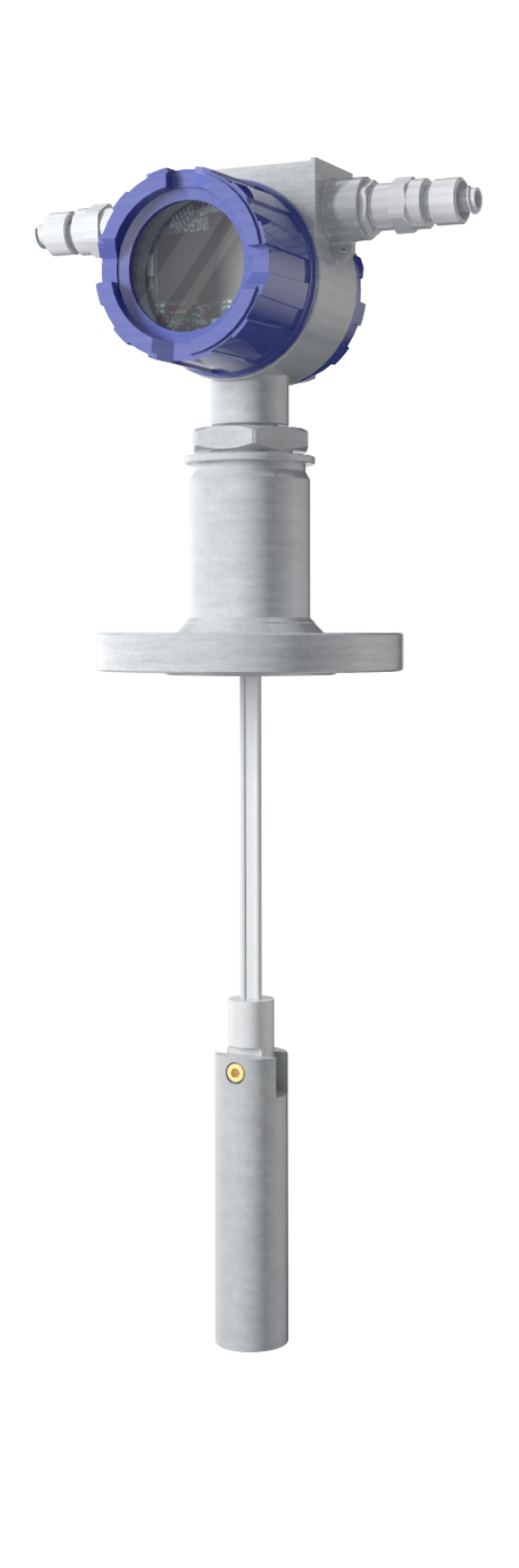

INSOL 901-902 Reflex Radar Interphase Level Meters are designed to monitor the levels of multiphase liquids in various technological apparatuses and containers.
Автоматический поточный влагомер нефти и нефтепродуктов. Предназначен для спользования при подготовке нефти перед переработкой, а также в системах постконтроля качества продукции.
Простота конструкции и возможность удаленной настройки позволяют минимизировать затраты и сроки на техническое обслуживания.
INSOL 901-902
In modern industry, especially in the oil and gas, chemical, and other sectors, it is critically important to precisely monitor the level and composition of multiphase liquids. This is necessary for optimizing separation processes, increasing efficiency, and ensuring the safety of technological operations. Interphase level meters are special devices that allow measuring the level of separation between different phases within multiphase systems.
Метрологические и физические характеристики
Device description
  • Присоедениние к процессу: Резьбовое соединение G2

  • Длина чувствительного элемента: 720 мм

  • Взрывозащита: Корпус Exd

  • Температура: -50.. +70 С

  • Монтаж: В проточную трубу Г образного типа
  • Диапазон измерений: 0-100%

  • Влажность 0-50 %: 1%

  • Влажность 50-100 %: 1.5%
Функциональные характеристики
  • Встроенный WEB: Общие настройки, просмотр архивов

  • Встроенный FTP сервер до 6 мес.: Чтение суточных архивов, с частотой записи 1-10 мин

  • Modbus TCP: Интеграцию в системы АСУТП

  • RS-485/ COM1/ Modbus RTU/ Slave: Интеграцию в системы АСУТП
  • RS-485/ COM2/Modbas RTU/ Master : Управление приводами, другими испол. механизмами

  • 4..20 mA: Интеграцию в системы АСУТП

  • Вход: DI: 2,4..20mA+24v

  • Ethernet/PoDL

  • Индикация OLED 2": Основные параметры, изменение сетевых настроек
Advantages of INSOL 901-902
Measurement of the Emulsion Layer
High accuracy
Reliability and durability
Versatility
Process automation
Remote configuration capability
INSOL 901 level meters allow data (signal) transmission and power supply through a single two-wire cable such as MKEH or similar, by using the Ethernet protocol 10Base-T1L.
Speed up to 10 Mbps
Distance up to 1000-1500 meters
No need for additional equipment or gateways
INSOL 901 level meters enable configuration and diagnostics from any computer on the network, as well as remote access by specialists from the INSOL Group of Companies.

Remote configuration and diagnostics
Access to the archive from the operator's workstation
Reduced maintenance time and costs
Support for Modern Protocols
Web Server and FTP Server
The simplicity of the design and the ability for remote configuration help minimize maintenance costs and time.
INSOL 901 uses the capacitive measurement method: It utilizes the difference in dielectric permittivity of the phases. The device measures changes in capacitance as the level of the phases changes.
The INSOL 901-902 Reflex Radar Level Meters allow for measuring the level and thickness of the emulsion layer in technological equipment and tanks. Accurate measurement of the emulsion layer in real time helps determine the optimal parameters for technological processes, optimize energy resource consumption, and provides the ability to monitor process disturbances in real-time, preventing their consequences.

Level Meter Type




Controlled Levels


Design Pressure

Enclosure Material

Calculated Ambient Temperature

Calculated Operating Temperature



Power Supply

Explosion Protection

Protection Against Dust, Foreign Bodies, and Water


Material of Probe/Waveguide

Type of Probe/Waveguide

Micropulse (Reflex Radar)
  • General Overflow Level
  • Phase Separation (Oil-Water, etc.)
  • Emulsion Layer Level and Thickness


6.3 MPa

Aluminum

-50 to +70°C

-50 to +120°C


Two-wire, 24V (combined with data transmission channel)

1Ex d [ia Ga] IIB T4 Gb X


IP66

Stainless Steel (Coating – HDPE / PTFE)

Flexible / Rigid
микроимпульсный (рефлекс-радарный)

- общий уровень взлива
- раздел фаз (нефть-вода и др.)
- уровень и толщина эмульсионного слоя


6,3 МПа

алюминий


от -50 до +70


от -50 до +120

двухпроводное, 24В (совмещенное с каналом передачи данных)

1Ex d [ia Ga] IIB T4 Gb X


IP66

нержавеющая сталь
(покрытие – HDPE / PTFE)

гибкий / жесткий
Parameter / Function
Value / Description
Value / Description
Parameter / Function
Length of rigid waveguide

Length of flexible waveguide


Built-in WEB server


Built-in FTP server

Modbus TCP

RS-485 / COM1 / Modbus RTU / Slave


RS-485 / COM1 / Modbus RTU / Master

4..20 mA

2 DI

Ethernet / 10Base-T1L


OLED 2” display
Up to 4,000 mm

Up to 20,000 mm


General settings, archive viewing

Reading daily archives, recording frequency 1-10 min

Integration into DCS

Integration into DCS


Control of valves and actuators

Integration into DCS

Connection of signal indicators

IEEE 802.3cg-2019

Main parameters, network settings modification
350 мм

Общие настройки, просмотр архивов

Чтение суточных архивов, частота записи 1-10 мин

Интеграция в АСУ ТП

Интеграция в АСУ ТП

Управление клапанами и исполнительными механизмами

Интеграция в АСУ ТП

Подключение сигнализаторов

IEEE 802.3cg-2019

Основные параметры, изменение сетевых настроек
