INSOL NODE | Managed switch
Автоматический поточный влагомер нефти и нефтепродуктов. Предназначен для спользования при подготовке нефти перед переработкой, а также в системах постконтроля качества продукции.
Простота конструкции и возможность удаленной настройки позволяют минимизировать затраты и сроки на техническое обслуживания.
Простота конструкции и возможность удаленной настройки позволяют минимизировать затраты и сроки на техническое обслуживания.

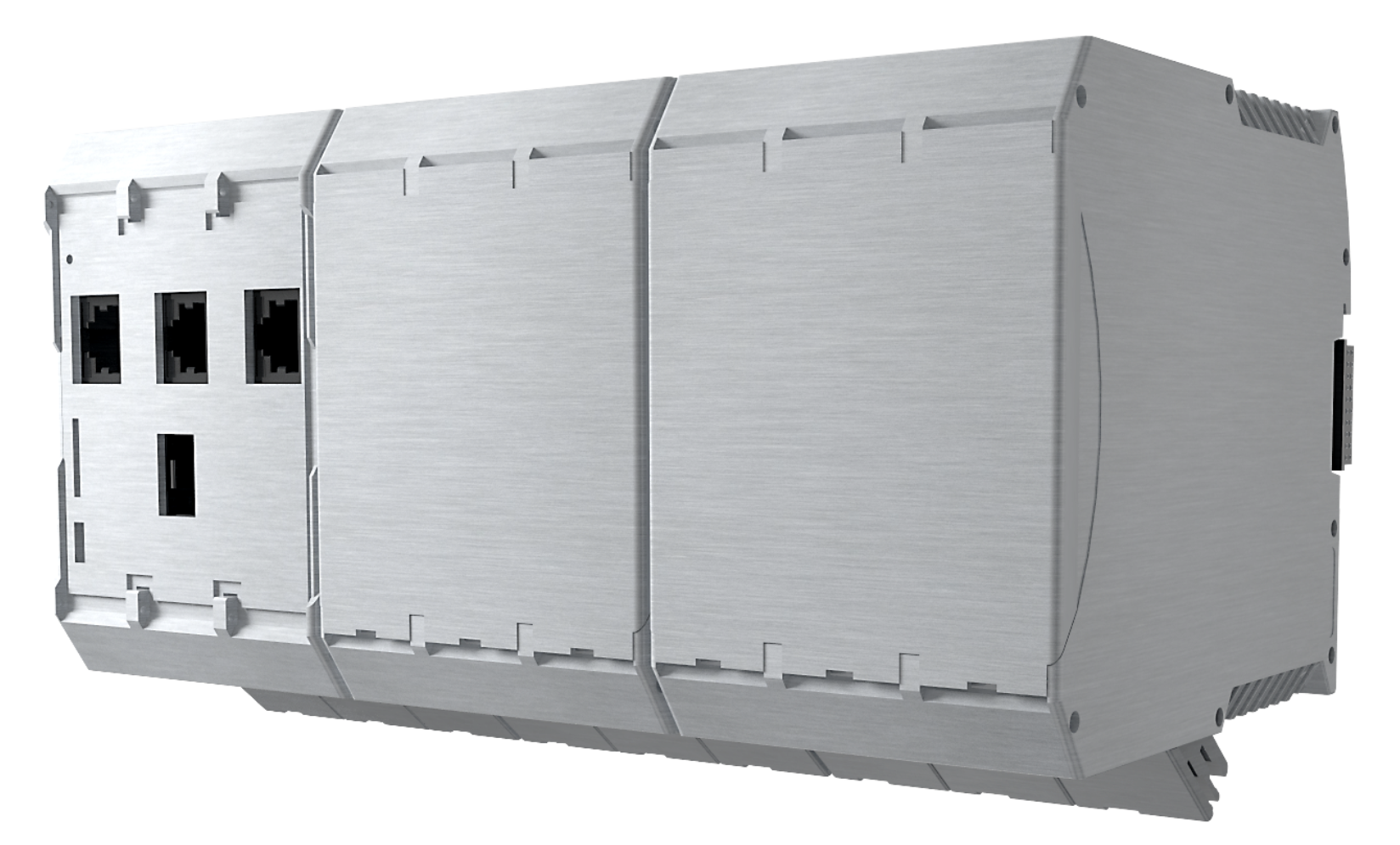

INSOL NODE
Modular Switch with Ethernet APL Support for Connecting Field Devices and Equipment Operating on the 10Base-T1L Protocol to a Unified Industrial Network.
Consists of a central CPU control module and additional expansion modules (Units).
Consists of a central CPU control module and additional expansion modules (Units).
Метрологические и физические характеристики
- Присоедениние к процессу: Резьбовое соединение G2
- Длина чувствительного элемента: 720 мм
- Взрывозащита: Корпус Exd
- Температура: -50.. +70 С
- Монтаж: В проточную трубу Г образного типа
- Диапазон измерений: 0-100%
- Влажность 0-50 %: 1%
- Влажность 50-100 %: 1.5%
Функциональные характеристики
- Встроенный WEB: Общие настройки, просмотр архивов
- Встроенный FTP сервер до 6 мес.: Чтение суточных архивов, с частотой записи 1-10 мин
- Modbus TCP: Интеграцию в системы АСУТП
- RS-485/ COM1/ Modbus RTU/ Slave: Интеграцию в системы АСУТП
- RS-485/ COM2/Modbas RTU/ Master : Управление приводами, другими испол. механизмами
- 4..20 mA: Интеграцию в системы АСУТП
- Вход: DI: 2,4..20mA+24v
- Ethernet/PoDL
- Индикация OLED 2": Основные параметры, изменение сетевых настроек
Key Advantages of INSOL Node CPU
► Support for 10Base-T1L and PoDL (Power over Data Line): Support for the 10Base-T1L Ethernet protocol and PoDL significantly reduces both infrastructure requirements and the overall number of cables used.
► Integration with Field Devices: Enables the connection of field instruments and devices of various types, ensuring their interaction and integration into a unified control system.
► Operation in Harsh Conditions: Designed for reliable operation across a wide range of climatic conditions and operating parameters.
► Flexibility and Scalability: The ability to add new expansion modules makes it easy to connect additional equipment without requiring extra infrastructure or spare communication channels.
► Integration with Field Devices: Enables the connection of field instruments and devices of various types, ensuring their interaction and integration into a unified control system.
► Operation in Harsh Conditions: Designed for reliable operation across a wide range of climatic conditions and operating parameters.
► Flexibility and Scalability: The ability to add new expansion modules makes it easy to connect additional equipment without requiring extra infrastructure or spare communication channels.
► Modular Architecture: The INSOL Node CPU is the core component of the switch, to which additional expansion modules (Units) can be connected, allowing the equipment to be customized to meet the specific number of field devices.
► High Performance: The use of the INSOL Node CPU ensures reliable network communication, efficient control, and high-speed response across the entire system.
► High Performance: The use of the INSOL Node CPU ensures reliable network communication, efficient control, and high-speed response across the entire system.
INSOL NODE CPU
The INSOL Node CPU is the central module of the INSOL Node switch, designed for the management and integration of field instruments and devices into a unified Ethernet APL industrial network.
Number of Connectable INSOL Node Units
Web Server
Network CPU
CPU 1
Operating System (OS)
Web Server
Network CPU
CPU 1
Operating System (OS)
Up to 4
Switch operation settings, enabling/disabling individual lines. Option to install Web-SCADA.
MIMXRT1176
Hexa-core 64-bit up to 2.0 GHz
Linux, FreeRTOS
Switch operation settings, enabling/disabling individual lines. Option to install Web-SCADA.
MIMXRT1176
Hexa-core 64-bit up to 2.0 GHz
Linux, FreeRTOS
Parameter / Function
Value / Description
Значение / Описание
Параметр / Функция
Ethernet 100BASE-T1
RJ-45
RGMII
Internal Bus
3 Ports
(RJ-45, SFP, RJ-45 POE (passive, 802.AT))
3 Ports
(Converter mode mtcp/rtu)
1 Port
I-BUS Net (1 RGMII, 1 UART connection on the right)
(RJ-45, SFP, RJ-45 POE (passive, 802.AT))
3 Ports
(Converter mode mtcp/rtu)
1 Port
I-BUS Net (1 RGMII, 1 UART connection on the right)
Key Features of INSOL Node Unit:
► Operation in Harsh Conditions
► Flexibility and Scalability
► Modular Architecture
► Automatic Bus Address Assignment
► Support for 10Base-T1L and PoDL (Power over Data Line)
► Flexibility and Scalability
► Modular Architecture
► Automatic Bus Address Assignment
► Support for 10Base-T1L and PoDL (Power over Data Line)
INSOL Node Unit
Expansion Module for INSOL Node Switch for Connection via 10BASE-T1L Protocol.
Ethernet 10BASE-T1L
Internal Bus
Power Supply
Additional Features
3 Ports
(48V, 30W per channel)
I-BUS Net
(2x RGMII, 2x UART)
24V
Maximum power consumption: up to 120W
Automatic Bus Address Assignment
(48V, 30W per channel)
I-BUS Net
(2x RGMII, 2x UART)
24V
Maximum power consumption: up to 120W
Automatic Bus Address Assignment
