SMART Separator

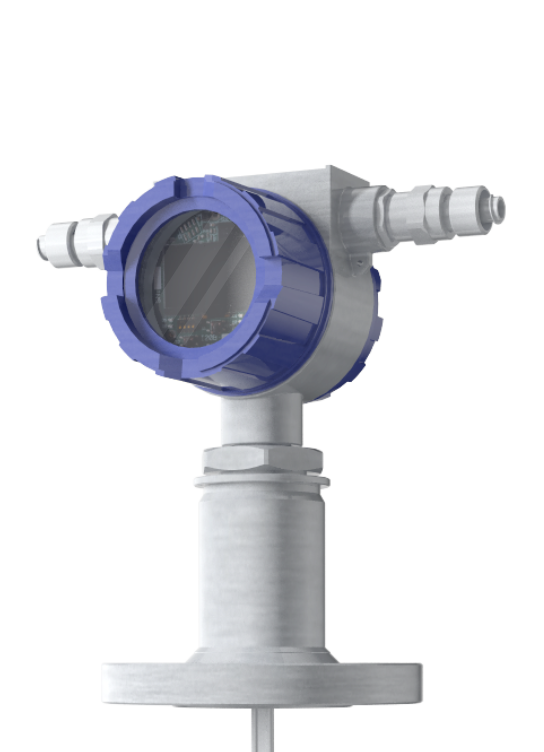

INSOL 905
INSOL 1000 EXD
INSOL 901
Interphase level meter with measurement of the emulsified layer height
INSOL 905
INSOL 1000 EXD
Interphase level meter with measurement of the emulsified layer height
INSOL 901
INSOL 902
Level meter with automatic measurement of dielectric constant
INSOL 902
Level meter with automatic measurement of dielectric constant
Coupling module for integration into the overall control system
Модуль сопряжения для интеграции в общую систему управления
SMART Separator: Maximum Oil Preparation Efficiency
In the pursuit of improving productivity and optimizing technological processes in the oil industry, modern enterprises require innovative solutions that enhance the efficiency of industrial facilities. INSOL offers the SMART Separator system, designed specifically to achieve these goals using advanced technologies and equipment.
The SMART Separator is a comprehensive solution aimed at maximizing the efficiency of three-phase separators and oil preparation systems in general.
The SMART Separator is a comprehensive solution aimed at maximizing the efficiency of three-phase separators and oil preparation systems in general.
► Multiphase level meter with emulsified layer measurement function INSOL 901
► Reflex radar level meter with oil dielectric constant measurement function INSOL 902
► Control valves with electric or pneumatic actuators
► Input-output and interface modules INSOL 905 / INSOL 1000
► Local automation / switching cabinet
► Reflex radar level meter with oil dielectric constant measurement function INSOL 902
► Control valves with electric or pneumatic actuators
► Input-output and interface modules INSOL 905 / INSOL 1000
► Local automation / switching cabinet
The system includes the following core equipment:
Layered Control of Technological Processes
The reflex radar level meters INSOL 901 allow for measuring the level and thickness of the emulsified layer in the separator. This enables a high degree of accuracy in determining the lower boundary of pure oil and the upper boundary of pure water. Such layered control allows for real-time monitoring and analysis of the oil and formation water separation processes.
Protection of Technological Processes and Additional Quality Control
The use of the SMART Separator systems significantly enhances the efficiency of technological equipment in oil preparation units. Additional control over output quality parameters not only helps to reduce oil losses with formation water but also prevents the entry of "substandard" oil into the commercial stock.
The INSOL 902 level meter automatically determines the dielectric constant of the separated oil after the partition, allowing for highly accurate phase level determination in the separation section.
Additionally, INSOL 902 automatically monitors the dynamics of water content in the oil, enabling real-time tracking of positive or negative trends in oil preparation.
Additionally, INSOL 902 automatically monitors the dynamics of water content in the oil, enabling real-time tracking of positive or negative trends in oil preparation.
Automated Analysis of Separated Oil
Enhancing Efficiency and Saving Energy Resources
The SMART Separator allows for the integration of the additional data into the overall control system, enabling real-time adjustments to the technological process to increase the efficiency of oil preparation by optimizing the use of chemical reagents, fuel gas for heating, and more.
