INSOL 100X EM
Expansion Modules
Expansion Modules
Expansion modules for the INSOL 1000 network control module, enabling connection of various field devices and actuators.
Key Advantages of INSOL 100X EM

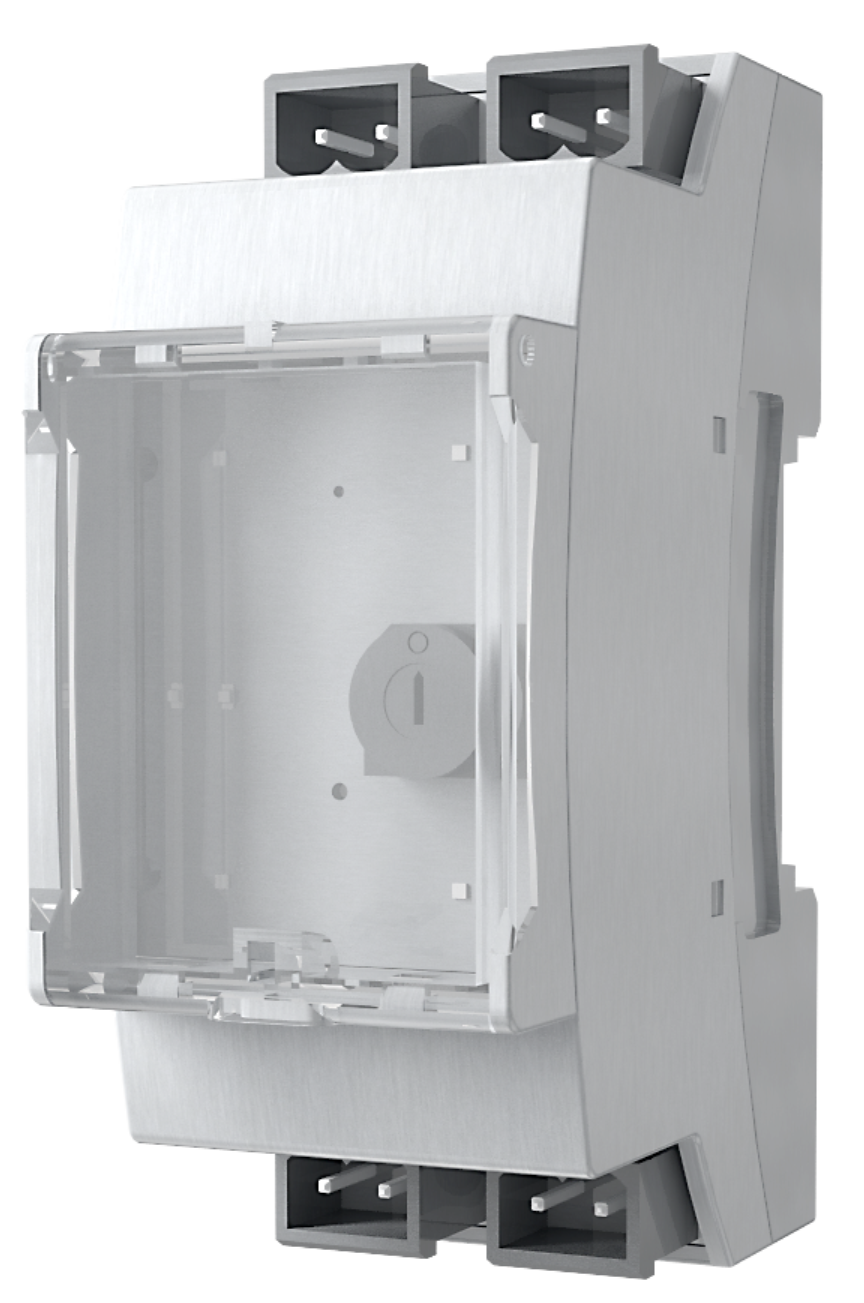

INSOL 100X
Expansion Module
► Modular architecture – allows customization of the system according to specific project requirements and the number of field devices.
► Automatic bus position detection
► Field device integration – supports connection of diverse field instruments and devices, enabling their interaction and seamless integration into a unified control system.
► Automatic bus position detection
► Field device integration – supports connection of diverse field instruments and devices, enabling their interaction and seamless integration into a unified control system.
► Operation in harsh environments – designed to perform reliably across a wide range of climatic conditions and operating parameters.
► Flexibility and scalability – additional expansion modules can be added as needed, allowing for straightforward connection of new equipment without requiring extra infrastructure or spare communication channels.
► Flexibility and scalability – additional expansion modules can be added as needed, allowing for straightforward connection of new equipment without requiring extra infrastructure or spare communication channels.
General Specifications
► Operating temperature range: –40 to +70 ºC
► Relative humidity: up to 95% (non-condensing)
► Mean time between failures (MTBF): at least 75,000 hours
► Dimensions: 35 × 90 × 58 mm
► Weight: 0.2 kg
► Enclosure material: ABS plastic
► Relative humidity: up to 95% (non-condensing)
► Mean time between failures (MTBF): at least 75,000 hours
► Dimensions: 35 × 90 × 58 mm
► Weight: 0.2 kg
► Enclosure material: ABS plastic
► Output voltage range: 10–30 V DC
► Power consumption: up to 2 W
► Power connection method: via I-BUS from the central INSOL 1000 NCU module
► I-BUS: provides power and connectivity for INSOL-10XX series modules
► Power consumption: up to 2 W
► Power connection method: via I-BUS from the central INSOL 1000 NCU module
► I-BUS: provides power and connectivity for INSOL-10XX series modules
Power Supply
► Operating temperature range: –40 to +70 ºC
► Relative humidity: up to 95% (non-condensing)
► Mean time between failures (MTBF): at least 75,000 hours
► Dimensions: 35 × 90 × 58 mm
► Weight: 0.2 kg
► Enclosure material: ABS plastic
► Relative humidity: up to 95% (non-condensing)
► Mean time between failures (MTBF): at least 75,000 hours
► Dimensions: 35 × 90 × 58 mm
► Weight: 0.2 kg
► Enclosure material: ABS plastic
General Specifications
► Supply voltage: 48 V DC
► Power consumption: up to 2 W
► Power connection method: via I-BUS from the central INSOL 1000 NCU module
► I-BUS: provides power and connectivity for INSOL-10XX series modules
► Power consumption: up to 2 W
► Power connection method: via I-BUS from the central INSOL 1000 NCU module
► I-BUS: provides power and connectivity for INSOL-10XX series modules
Power Supply
► Number of digital inputs: 8
► Galvanic isolation: 1.5 kV
► Galvanic isolation: 1.5 kV
Digital Outputs
► Number of digital outputs: 8
► Maximum switching voltage (DC): 30 V
► Maximum switching current: 500 mA
► Galvanic isolation: 1.5 kV
► Maximum switching voltage (DC): 30 V
► Maximum switching current: 500 mA
► Galvanic isolation: 1.5 kV
Digital Outputs
INSOL-1001 8DO Digital Output Module
INSOL-1003 4AI/AO Analog Input/Output Module
Input Parameters
► DC supply voltage: 24 V
► Rated current consumption: not more than 2 A
► Rated current consumption: not more than 2 A
Output Parameters
► Supply voltage: 48 V DC
► Rated current: 0.8 A
► Rated power: 40 W
► Rated current: 0.8 A
► Rated power: 40 W
► Operating temperature range: –40 to +70 ºC
► Relative humidity: up to 95% (non-condensing)
► Mean time between failures (MTBF): at least 75,000 hours
► Dimensions: 35 × 90 × 58 mm
► Weight: 0.2 kg
► Enclosure material: ABS plastic
► Relative humidity: up to 95% (non-condensing)
► Mean time between failures (MTBF): at least 75,000 hours
► Dimensions: 35 × 90 × 58 mm
► Weight: 0.2 kg
► Enclosure material: ABS plastic
General Specifications
A key feature of this module is the versatility of its analog inputs. Each input supports three modes: current output, active current input, and passive current input. The operating mode is selected via software.
General Specifications
► Operating temperature range: –40 to +70 ºC
► Relative humidity: up to 95% (non-condensing)
► Mean time between failures (MTBF): at least 75,000 hours
► Dimensions: 35 × 90 × 58 mm
► Weight: 0.2 kg
► Enclosure material: ABS plastic
► Relative humidity: up to 95% (non-condensing)
► Mean time between failures (MTBF): at least 75,000 hours
► Dimensions: 35 × 90 × 58 mm
► Weight: 0.2 kg
► Enclosure material: ABS plastic
► Supply voltage: 48 V DC
► Rated current: 0.8 A
► Rated power: 40 W
► Rated current: 0.8 A
► Rated power: 40 W
Output Parameters
► DC input voltage: 24 V
► Rated current consumption: not more than 2 A
► Rated current consumption: not more than 2 A
Input Parameters
INSOL-1052 LPI Local Power Injector
INSOL-1002 8DI Digital Input Module
