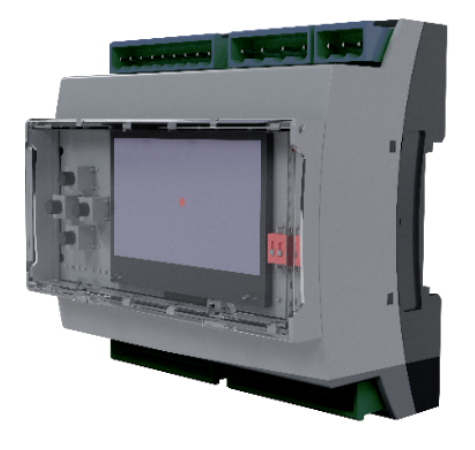

INSOL 1000 NCU – Network Control Unit
Modular input/output and control devices designed to connect conventional measurement instruments and various actuators, integrating them into a unified network. This enables efficient control and monitoring of industrial assets via Ethernet APL.
Автоматический поточный влагомер нефти и нефтепродуктов. Предназначен для спользования при подготовке нефти перед переработкой, а также в системах постконтроля качества продукции.
Простота конструкции и возможность удаленной настройки позволяют минимизировать затраты и сроки на техническое обслуживания.
INSOL 1000 NCU
Network Control Unit
Метрологические и физические характеристики
  • Присоедениние к процессу: Резьбовое соединение G2

  • Длина чувствительного элемента: 720 мм

  • Взрывозащита: Корпус Exd

  • Температура: -50.. +70 С

  • Монтаж: В проточную трубу Г образного типа
  • Диапазон измерений: 0-100%

  • Влажность 0-50 %: 1%

  • Влажность 50-100 %: 1.5%
Функциональные характеристики
  • Встроенный WEB: Общие настройки, просмотр архивов

  • Встроенный FTP сервер до 6 мес.: Чтение суточных архивов, с частотой записи 1-10 мин

  • Modbus TCP: Интеграцию в системы АСУТП

  • RS-485/ COM1/ Modbus RTU/ Slave: Интеграцию в системы АСУТП
  • RS-485/ COM2/Modbas RTU/ Master : Управление приводами, другими испол. механизмами

  • 4..20 mA: Интеграцию в системы АСУТП

  • Вход: DI: 2,4..20mA+24v

  • Ethernet/PoDL

  • Индикация OLED 2": Основные параметры, изменение сетевых настроек
Daisy-chain and ring topology device connectivity

Two 10BASE-T1L ports
Built-in web server, FTP server, parameter archiving, and remote module configuration via web interfaces

Expandable via attachable i-100X series modules
Key Advantages of INSOL 1000 NCU
Modular Architecture: INSOL 1000 NCU serves as the central module to which additional INSOL 100X expansion modules can be connected, allowing customization based on project requirements and the number of field devices.

High Performance: The use of INSOL 1000 NCU ensures reliable network communication, efficient control, and rapid system response times.

Support for 10Base-T1L and PoDL (Power over Data Line): Support for the 10Base-T1L Ethernet protocol and PoDL significantly reduces infrastructure complexity and minimizes overall cabling requirements.

Distributed Process Control: INSOL 1000 enables decentralized control of industrial processes, enhancing system reliability and efficiency while lowering operating costs.
Modular Architecture: INSOL 1000 NCU acts as a central control unit, supporting connection of INSOL 100X expansion modules. This enables flexible adaptation to specific project requirements and the number of connected field devices.

High Performance: Ensures reliable data transmission, efficient process control, and fast system response across the network.

Support for 10Base-T1L and PoDL: Integration of 10Base-T1L Ethernet and Power over Data Line (PoDL) significantly reduces cabling and infrastructure complexity.

Distributed Process Control: Facilitates decentralized control of industrial processes, improving overall system reliability, scalability, and cost-efficiency.
General Specifications
Operating Temperature Range: –40 to +70 °C
Relative Humidity: up to 95% (non-condensing)
Mean Time Between Failures (MTBF): ≥ 75,000 hours
Dimensions: 105 × 90 × 58 mm
Weight: 0.4 kg
Enclosure Material: ABS plastic
Power Connection Options:
– Local power supply
– Remote power via PoDL
– Simultaneous use of PoDL and local power

DC Supply Voltage: 24–48 V
PoDL Supply Voltage: 48 V
Power Consumption: 5 W
Auxiliary Power Output: 24 V
Power Supply
Number of Ethernet 10BASE-T1L Ports: 2
Port Specifications: Data rate – 10 Mbps
Connector Type: Terminal block
Transmission Distance: Up to 1,500 meters
Galvanic Isolation: 1.5 kV (when INSOL-1050 jumper is not installed)
Ethernet
Number of Modbus RS-485 Ports: 2

Galvanic Isolation: 1.5 kV
RS-485
Number of Digital Inputs: 8

Logic Low Level: 0 to 3 V

Logic High Level: 12 to 30 V

Galvanic Isolation: 1.5 kV
Digital Inputs
Supported Protocols:
– Modbus RTU via RS-485
– Modbus TCP via Ethernet
– 10Base-T1L (Ethernet ICs IEEE 802.3cg)
– INSOL NET

Built-in FTP Server:
– Up to 6 months of daily archives
– Configurable logging interval: 1–10 minutes

RS-485 Port Protection:
– High resistance to common-mode transients up to 25 kV/μs
– Short-circuit protection on signal lines
– ESD protection up to 15 kV
HMI
  • OLED Display: 2"
  • Configuration: Network settings and access passwords

Embedded Web Interface - General settings, archive viewing

Power Supply Protection Features
  • Protection against incorrect polarity connection
  • Protection against short-term overvoltage above 30 V
  • Overheat (thermal) protection for digital outputs with oErr LED indication
Additional Features
