INSOL 907 | Water and Oil Level Measuring Tape
The INSOL 907 electronic tape measure is designed for measuring the temperature and level of oil and petroleum products, as well as the level of bottom water in tanks and open-type containers.
It provides audible phase separation indication and measures the temperature of the working medium in the tank. The differential measurement principle ensures the highest accuracy of measurements.
Автоматический поточный влагомер нефти и нефтепродуктов. Предназначен для спользования при подготовке нефти перед переработкой, а также в системах постконтроля качества продукции.
Простота конструкции и возможность удаленной настройки позволяют минимизировать затраты и сроки на техническое обслуживания.

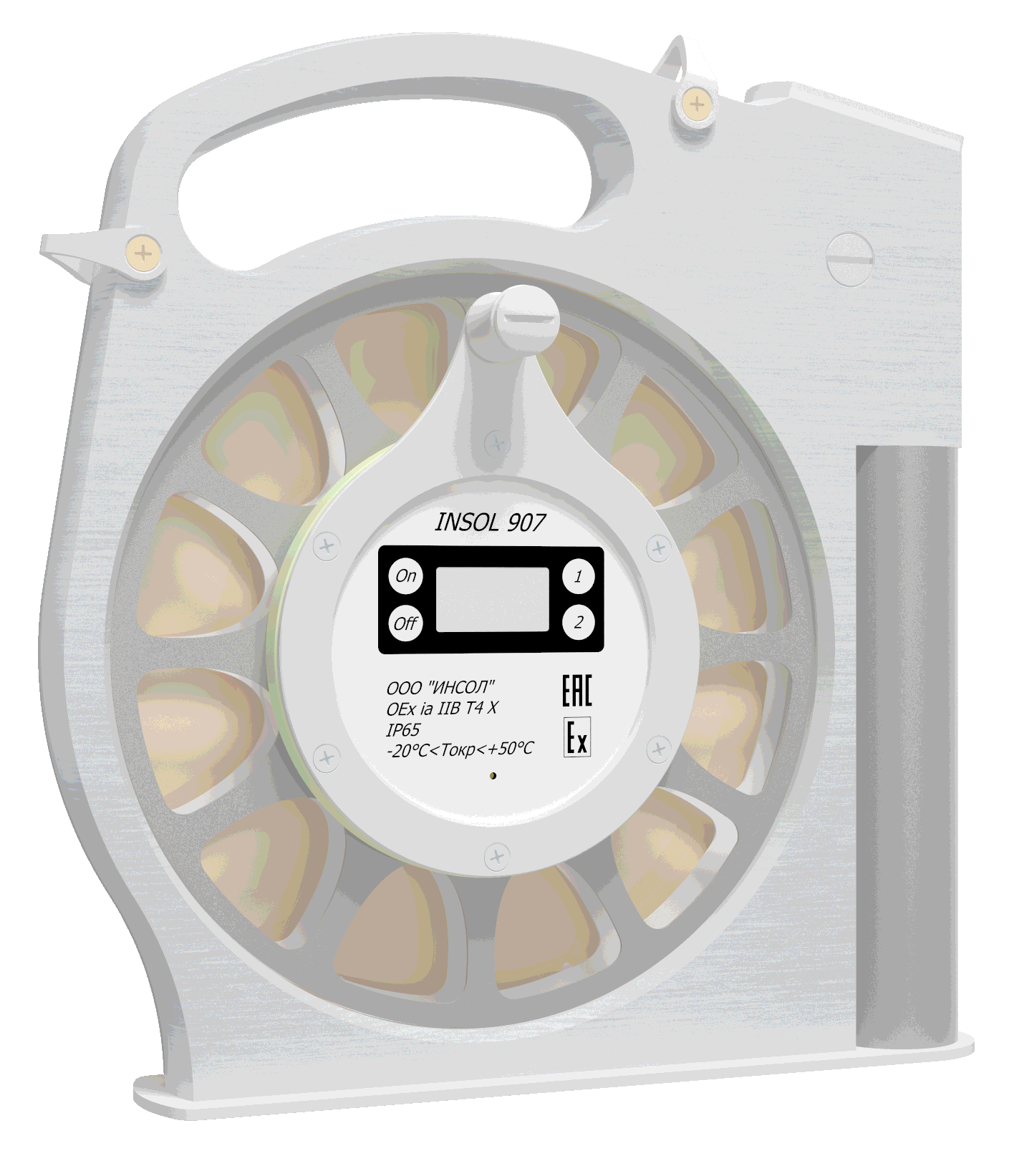

INSOL 907
Electronic three-function tape measure for measuring levels of oil, petroleum products, and bottom water. Accurate and reliable assessment of oil, petroleum products, as well as bottom water levels in tanks and reservoirs is a critical task in the oil and gas industry.
Метрологические и физические характеристики
What is an electronic three-function tape measure for measuring oil level?
  • Присоедениние к процессу: Резьбовое соединение G2

  • Длина чувствительного элемента: 720 мм

  • Взрывозащита: Корпус Exd

  • Температура: -50.. +70 С

  • Монтаж: В проточную трубу Г образного типа
  • Диапазон измерений: 0-100%

  • Влажность 0-50 %: 1%

  • Влажность 50-100 %: 1.5%
Функциональные характеристики
  • Встроенный WEB: Общие настройки, просмотр архивов

  • Встроенный FTP сервер до 6 мес.: Чтение суточных архивов, с частотой записи 1-10 мин

  • Modbus TCP: Интеграцию в системы АСУТП

  • RS-485/ COM1/ Modbus RTU/ Slave: Интеграцию в системы АСУТП
  • RS-485/ COM2/Modbas RTU/ Master : Управление приводами, другими испол. механизмами

  • 4..20 mA: Интеграцию в системы АСУТП

  • Вход: DI: 2,4..20mA+24v

  • Ethernet/PoDL

  • Индикация OLED 2": Основные параметры, изменение сетевых настроек
INSOL 907 Measurement Method - Maximum Accuracy in Phase Separation Level Determination
The INSOL 907 three-function tape measure can be supplied in a special version with a submerged sampling device, which can be attached or detached from the tape measure sensor as needed.
The differential measurement principle of the INSOL 907 ensures maximum measurement accuracy, achieved by using two pairs of sensors. Unlike solutions used in other devices, the INSOL 907 tape measure measures the relative measurements between the upper and lower pairs of sensors, rather than the absolute value of the dielectric constant of the medium. This allows for highly accurate measurement of both the upper level of crude oil and its lower boundary, which separates it from the underlying water or emulsion layer.

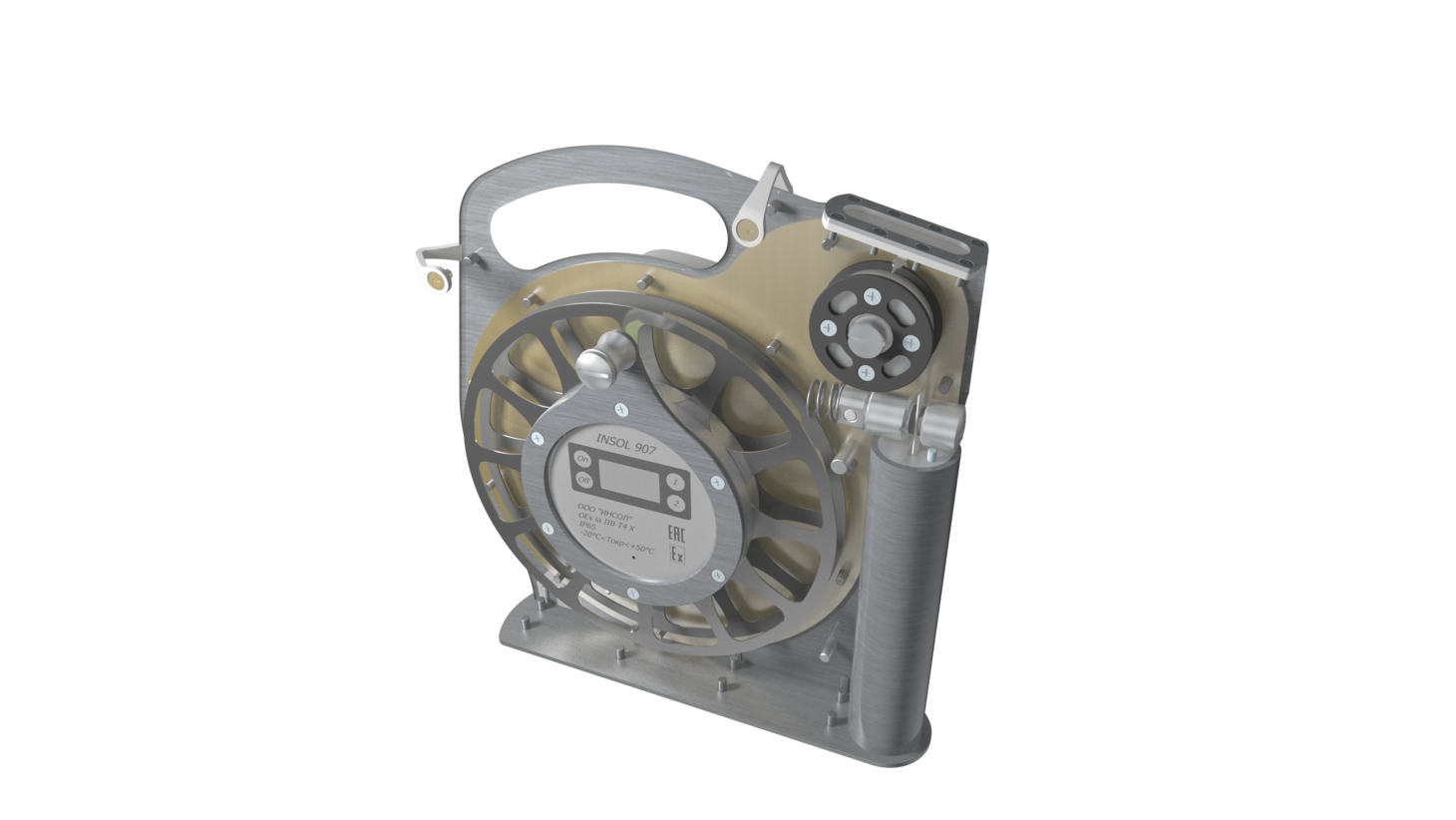

The tape measure is designed for easy and quick replacement of the rechargeable battery. To do this, simply unscrew the compartment cover and replace the power element.
Additionally, the replacement of the measuring tape with a new one is just as easy and quick, requiring only one tool.
The INSOL 907 three-function electronic tape measure ensures high measurement accuracy and operational reliability.
The INSOL 907 tape measure provides maximum ease of use, both in terms of conducting measurements and maintaining the device.
INSOL 907 Measurement Method - Maximum Accuracy in Phase Separation Level Determination
INSOL 907 is a versatile and affordable device that can be used in various facilities, not only in the oil and gas sector, making it a universal solution for a wide range of tasks.
INSOL 907 Tape Measure Maintenance – Easy, Simple, and Quick
High Accuracy and Reliability
Ease of Use
Versatility and Accessibility

Type of level meter

Level measurement method



Controlled levels

Level measurement indication

Temperature measurement indication
electronic, interphase,

portable

differential
  • total overflow level
  • phase separation (oil-water, oil-emulsion, etc.)

visual, audible

visual
Parameter / Function
Value / Description
Value / Description
Parameter / Function
Tape length

Temperature measurement range

Ambient temperature rating


Power supply

Explosion protection
20 m

from -40 to +90

from -25 to +70


Battery 1/2 AA, 3.6 V

0Ex d ia IIB T4 X
20 м

от -40 до +90


от -25 до +70

батарейка 1/2 АА, 3,6 В

0Ex d ia IIB T4 X
